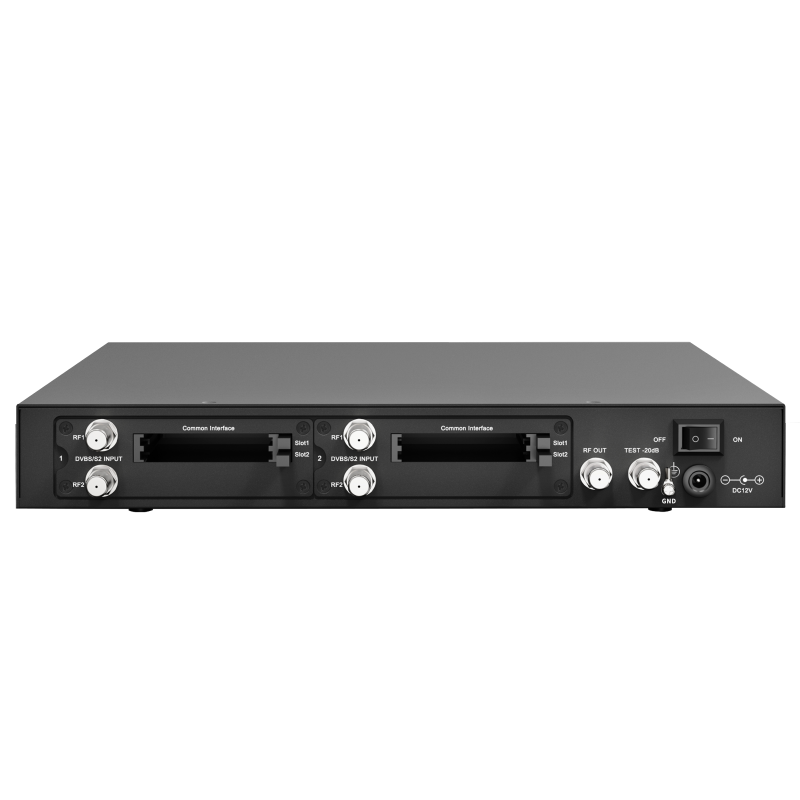

SKD715XP Encrypted PCMCIA 4 DVB-S/S2 Tuners to RF Modulator with CI Slots

SKD715XP Encrypted PCMCIA 4 DVB-S/S2 Tuners to RF Modulator with CI Slots

Request project pricing and delivery details

This product is presented for B2B sourcing and technical evaluation. Pricing, MOQ, customization and lead time are provided according to your project requirements.

Project pricing on request
OEM / ODM support available
Technical consultation before quotation

Request Quote

Share your quantity, market and technical requirements to receive an accurate quotation.

SKU SKD715XP

Categories Digital TV Products

Tags Digital Headend, Hd Encoder Modulator, Cable TV Modulator, Tuners to RF Modulator, PCMCIA, Satellite Receiver

Description

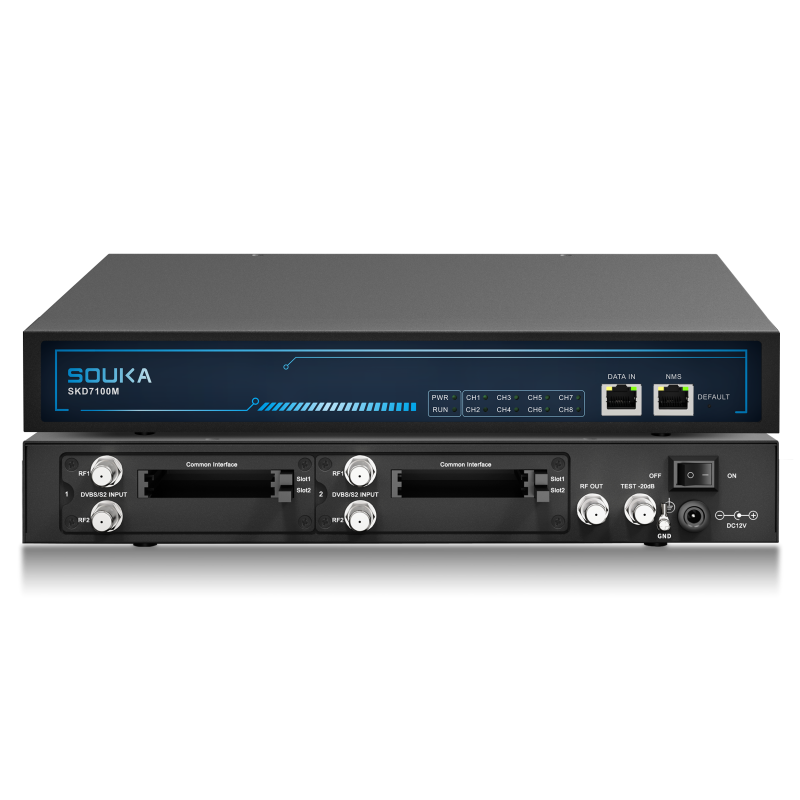

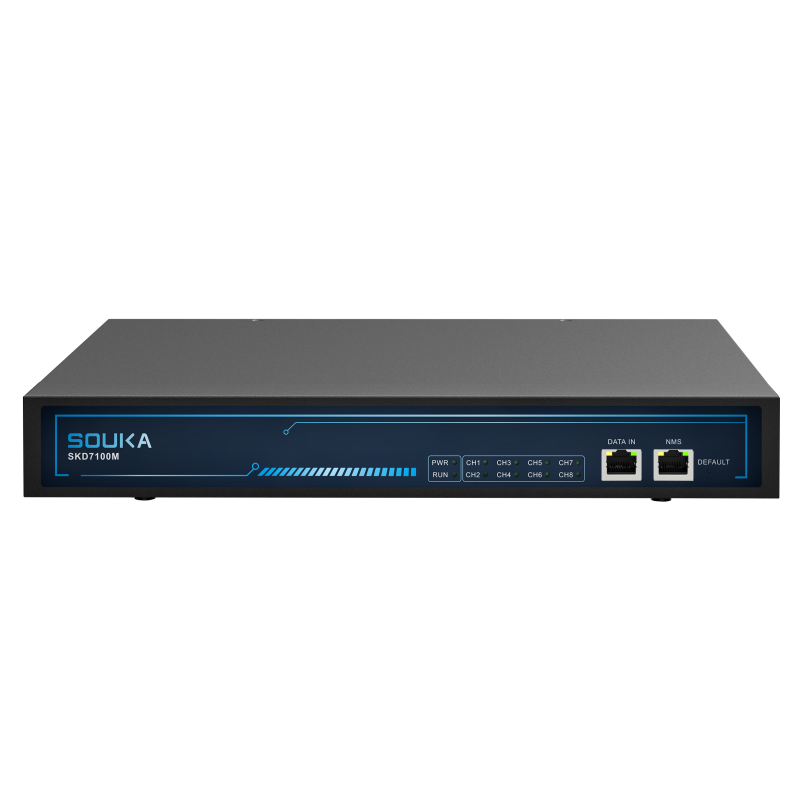

Product Overview

SKD715XP Encrypted PCMCIA 4 DVB-S/S2 Tuners to RF Modulator with CI Slots is a digital RF modulation platform. It is engineered for hospitality headend projects that must convert satellite, terrestrial, cable, or encoded signals into stable multi-standard RF distribution. Key specification focus includes Primary Output: RF output, Protocol Support: UDP, RTP, SPTS, MPTS, and Broadcast Standard: DVB-C, ATSC, ISDB-T, DTMB, QAM. Consolidates signal conversion and RF delivery inside a project-ready chassis for cleaner headend deployment.

For engineering review, SKD715XP Encrypted PCMCIA 4 DVB-S/S2 Tuners to RF Modulator with CI Slots is typically assessed around service delivery through RF output, protocol handling based on UDP, RTP, SPTS, MPTS, broadcast compatibility around DVB-C, ATSC, ISDB-T, DTMB, QAM, and network connectivity through GIGABIT INPUT PID REMAPPING, PSI/SI INFORMATION EDITING AND INSERTION DIGITAL MODULATION OUTPUT OF 4/8 FREQUENCIES, AND THE OUTPUT SUPPORTS DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC (OPTIONAL) 1 GIGABIT PORT AND 1 MANAGEMENT PORT OPERATED THROUGH PC (WEB), THE DEVICE SUPPORTS CLOUD MANAGEMENT.

Project Fit

In hospitality projects, SKD715XP Encrypted PCMCIA 4 DVB-S/S2 Tuners to RF Modulator with CI Slots is typically evaluated as a digital RF modulation platform within the delivery chain from headend processing to guest-facing service presentation. It is a practical fit when signal delivery has to align with UDP, RTP, SPTS, MPTS, broadcast compatibility is expected around DVB-C, ATSC, ISDB-T, DTMB, QAM, and the deployment format calls for WALL-MOUNTED.

Fits hotel TV headend deployments where one rack device must convert multiple broadcast sources into room-facing RF channels
Useful for hospitals, campuses, and residential projects that still rely on controlled DVB or ATSC distribution at scale
Suitable when engineers need centralized Web-based management and predictable multi-standard modulation output

Key Specification Table

The table below highlights the fields most buyers, consultants, and project engineers usually verify first.

Specification	Details
Model	SKD715XP
Device Class	Modulator
Deployment Role	Digital TV headend modulator
Primary Output	RF output
Protocol Support	UDP, RTP, SPTS, MPTS
Broadcast Standard	DVB-C, ATSC, ISDB-T, DTMB, QAM
Network Interface	GIGABIT INPUT PID REMAPPING, PSI/SI INFORMATION EDITING AND INSERTION DIGITAL MODULATION OUTPUT OF 4/8 FREQUENCIES, AND THE OUTPUT SUPPORTS DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC (OPTIONAL) 1 GIGABIT PORT AND 1 MANAGEMENT PORT OPERATED THROUGH PC (WEB), THE DEVICE SUPPORTS CLOUD MANAGEMENT
Installation	WALL-MOUNTED
Power Supply	DC12V
Item NO.	SKD715XP

Core Capabilities

The current model profile supports the following engineering and procurement checkpoints.

Supports transport workflows such as UDP, RTP, SPTS, MPTS for managed signal distribution
Covers broadcast environments based on DVB-C, ATSC, ISDB-T, DTMB, QAM
Provides network connectivity through GIGABIT INPUT PID REMAPPING, PSI/SI INFORMATION EDITING AND INSERTION DIGITAL MODULATION OUTPUT OF 4/8 FREQUENCIES, AND THE OUTPUT SUPPORTS DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC (OPTIONAL) 1 GIGABIT PORT AND 1 MANAGEMENT PORT OPERATED THROUGH PC (WEB), THE DEVICE SUPPORTS CLOUD MANAGEMENT
Fits installation conditions that require WALL-MOUNTED
Uses DC12V as the declared power requirement

Value For Hospitality Projects

Consolidates signal conversion and RF delivery inside a project-ready chassis for cleaner headend deployment
Supports broadcast-standard flexibility across DVB-C, DVB-T/T2, DTMB, ISDB-T, and ATSC-oriented projects
Improves operational control through Web management, stream handling, and frequency planning support

Detailed Technical Specifications

The following tables organize the available technical data into clearer review blocks for project design and purchasing.

General Specification

Specification	Details
Model	SKD715XP
Broadcast Standard	DVB-C, ATSC, ISDB-T, DTMB, QAM
Item NO.	SKD715XP
Constellation	16QAM、32QAM、64 QAM、128 QAM、256 QAM
MER	≥36dB
Symbol rate	3.600~6.960Msps
Out band rejection	≥60dB
Frequencies	4
FFT	Single carrier, multi-carrier
Code Rate	0.4, 0.6, 0.8
With out band rejection	≥60dB
Guard interval	1/4，1/8，1/16，1/32
Bandwidth	6MHz
J.83B - Standard	Annex B
Product Category	Digital TV Products
Module for each card	2 PCMCIA Input Modules
Device Class	Modulator
Deployment Role	Digital TV headend modulator

Platform And Processing

Modulation parameters - J.83A/C - Standard	Annex A/C
Modulation parameters - Channels	4
Sync Frame	420, 595 and 945

Signal And Interfaces

Protocol Support	UDP, RTP, SPTS, MPTS
Network Interface	GIGABIT INPUT PID REMAPPING, PSI/SI INFORMATION EDITING AND INSERTION DIGITAL MODULATION OUTPUT OF 4/8 FREQUENCIES, AND THE OUTPUT SUPPORTS DVBC (J83A/B/C), DVBT/T2, DTMB, ISDB, ATSC (OPTIONAL) 1 GIGABIT PORT AND 1 MANAGEMENT PORT OPERATED THROUGH PC (WEB), THE DEVICE SUPPORTS CLOUD MANAGEMENT
Primary Output	RF output
Module input port - Cards	2
IP Input - IP Input port	1 Gigabit RJ45 network port
Input format	Support UDP/RTP protocol input, support SPTS/MPTS stream processing, support 256 SPTS or 8 MPTS input
RF output - Output port	F female connector，1
Output standard	DVBC(J83A/B/C),DVBT/T2,DTMB,ISDB-T,ATSC(optional)
RF frequency range	50-870MHz minimum step 1MHz
Output level	≥105dBuV（0-20dB Adjust range，step 0.5dB）
Output impedance	75Ω
Output frequencies	4/8 frequencies（optional）
Output frequency range( adjustable)	50-999.999MHz，minimum step 0.001MHz
Output level adjustment range	0～-20dB
DTMB - Standard	GB20600-2006
Interweaving depth	None、240、720
Output frequency	50-999.999MHz，minimum step 0.001MHz
ISDB - T - Standard	ANSI/SCTE 2001-B004
Frequency	4
DVB - T - Standard	ETS 300 744
DVB - T2 - Standard	EN 302 755
ATSC - Standard	8VSB
Output frequency adjustment range	50-999.999MHz，minimum step 0.001MHz

Mechanical And Power

Installation	WALL-MOUNTED
Power Supply	DC12V
Size	318(L)260(W)44(H)mm
Installation method	1U19inch Chasis-mounted、Wall-mounted, Desktop
Working temperature, humidity	-10℃-45℃、40%-70%
Storage temperature and humidity	-40℃-70℃、40%-95%
Power - Supply voltage	DC12V
Maximum current	7000mA

Commercial Reference

These baseline fields help procurement teams keep model identity and order handling aligned during quotation and delivery.

Brand	QINGLANG
Item NO.	SKD715XP

Deployment Considerations

Before final selection, confirm the following project-side assumptions with engineering and operations teams.

Verify the exact broadcast input type, output standard, and target channel plan before selecting the final configuration
Review whether the project needs pure RF output or parallel IP plus RF distribution for mixed infrastructures
Confirm rack density, cooling, and power redundancy expectations for uninterrupted headend operation
