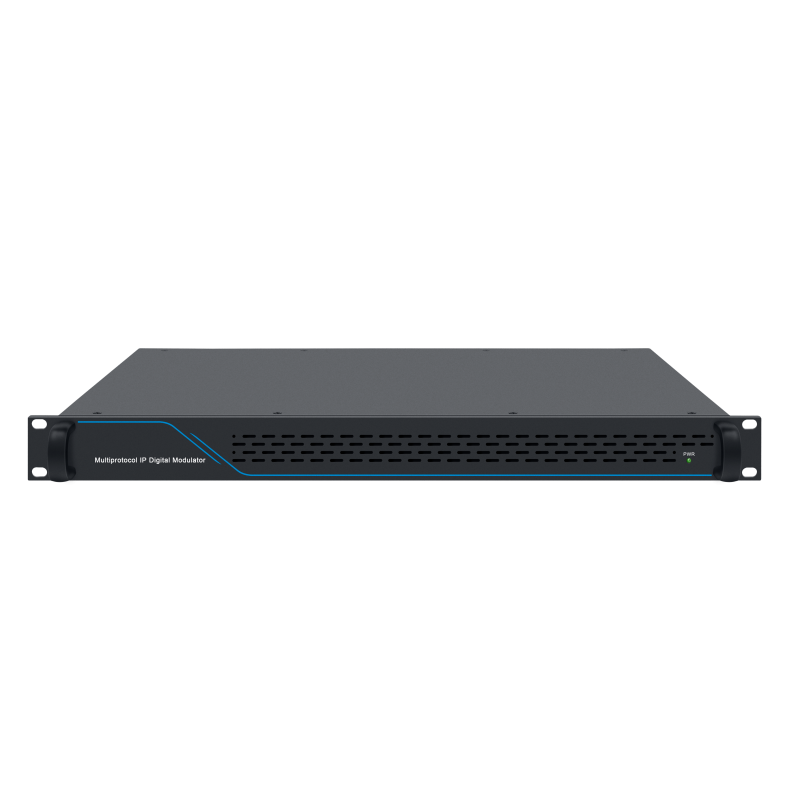

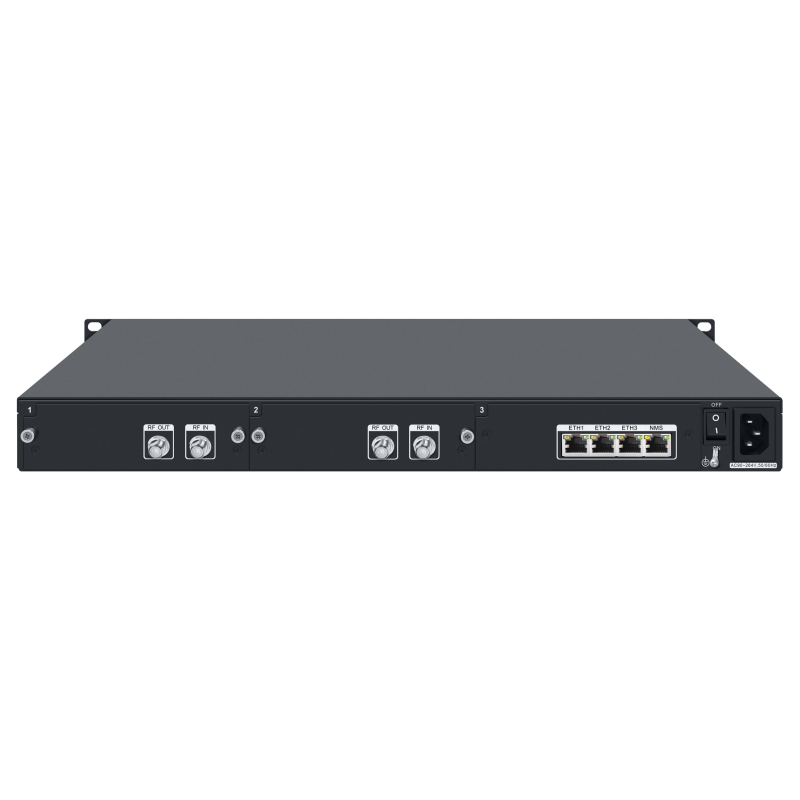

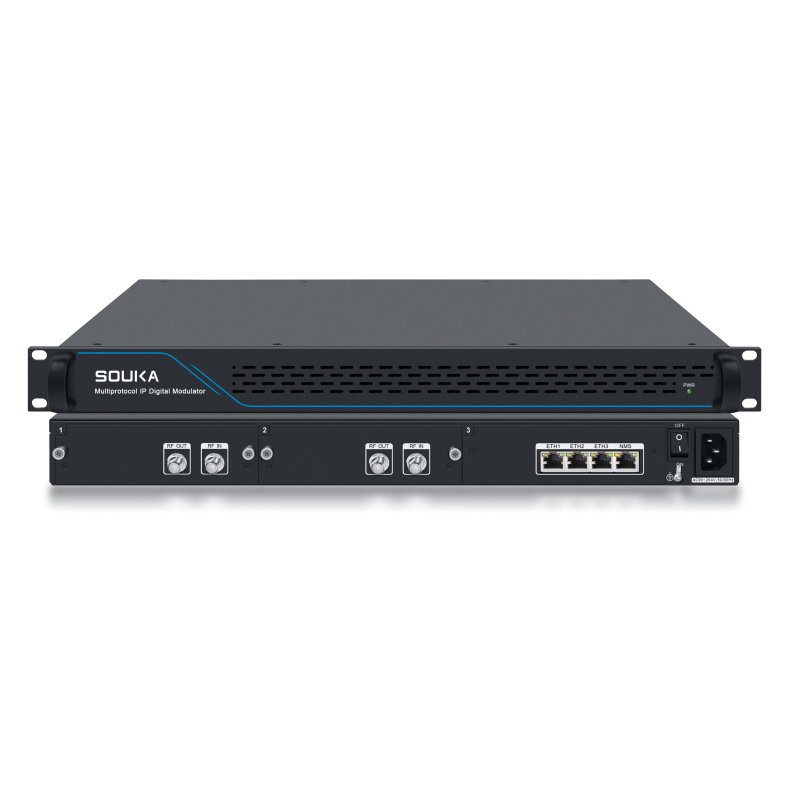

SKD180XS IP QAM Modulator with Multi-Protocol IP Input

Product Overview

SKD180XS IP QAM Modulator with Multi-Protocol IP Input is a digital RF modulation platform. It is designed for projects that need to convert IPTV streams or managed IP feeds into RF services for downstream digital CATV distribution. Key specification focus includes Signal Flow: IP to IP and QAM, Primary Input: IP input, and Primary Output: IP and QAM output. Bridges IPTV or managed IP streams to RF delivery without forcing a full endpoint replacement project.

For engineering review, SKD180XS IP QAM Modulator with Multi-Protocol IP Input is typically assessed around signal conversion from IP to IP and QAM, source acquisition through IP input, service delivery through IP and QAM output, and protocol handling based on UDP, RTP, RTSP, HTTP, HLS, RTMP, SRT.

Project Fit

In hospitality projects, SKD180XS IP QAM Modulator with Multi-Protocol IP Input is typically evaluated as a digital RF modulation platform within the delivery chain from headend processing to guest-facing service presentation. It is a practical fit when signal delivery has to align with UDP, RTP, RTSP, HTTP, HLS, RTMP, SRT and broadcast compatibility is expected around ATSC, ISDB-T, DTMB, QAM.

• Fits digital migration projects where properties already own IP streams but still distribute channels over RF infrastructure
• Useful for hospitality headend designs that need IP-to-QAM or IP-to-DVB edge delivery in a controlled rack environment
• Suitable when engineers want to combine central stream management with existing RF endpoint networks

Key Specification Table

The table below highlights the fields most buyers, consultants, and project engineers usually verify first.

Core Capabilities

The current model profile supports the following engineering and procurement checkpoints.

• Supports transport workflows such as UDP, RTP, RTSP, HTTP, HLS, RTMP, SRT for managed signal distribution
• Covers broadcast environments based on ATSC, ISDB-T, DTMB, QAM

Value For Hospitality Projects

• Bridges IPTV or managed IP streams to RF delivery without forcing a full endpoint replacement project
• Supports cleaner digital headend evolution for hotels upgrading from traditional RF to mixed IP/RF architectures
• Helps protect earlier infrastructure investments while improving content control and stream flexibility

Detailed Technical Specifications

The following tables organize the available technical data into clearer review blocks for project design and purchasing.

General Specification

Signal And Interfaces

Commercial Reference

These baseline fields help procurement teams keep model identity and order handling aligned during quotation and delivery.

Deployment Considerations

Before final selection, confirm the following project-side assumptions with engineering and operations teams.

• Review the upstream IP stream format, bandwidth profile, and multicast planning before choosing the modulation configuration
• Confirm the required RF standard, service count, and downstream network budget so edge output remains stable
• Align deployment around switch topology, VLAN planning, and headend rack power strategy
